• 4-Way Driver Seat -inc: Manual Recline, Fore/Aft Movement and Manual Lumbar Support
• 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
• Analog Appearance
• Day-Night Rearview Mirror

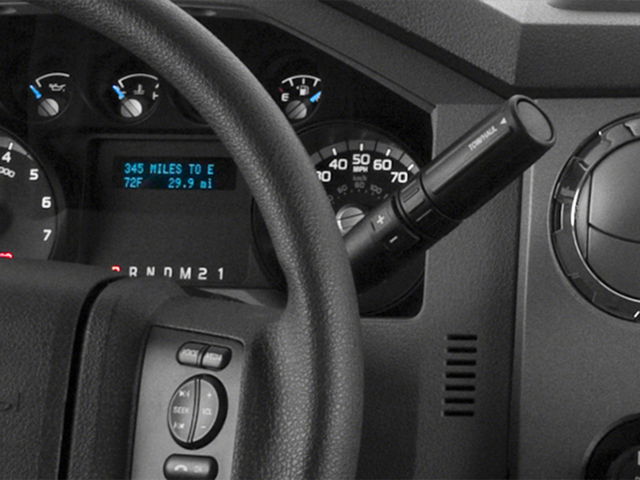

• Driver Information Center
• Fade-To-Off Interior Lighting
• Fixed Antenna

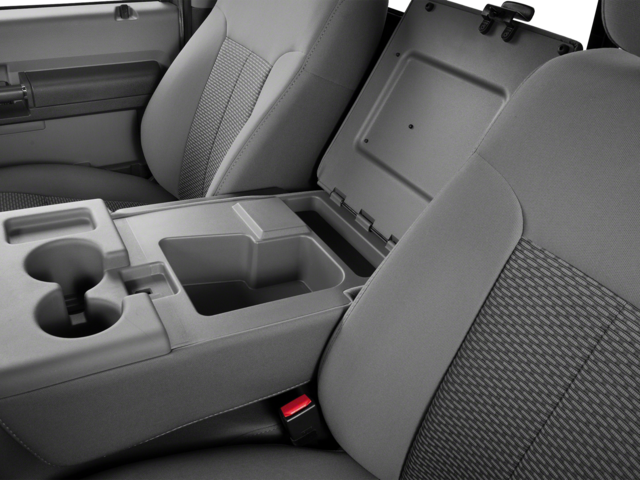

• Front Center Armrest w/Storage
• Front Cupholder
• Front Map Lights
• Front Seats w/Manual Driver Lumbar
• Full Cloth Headliner

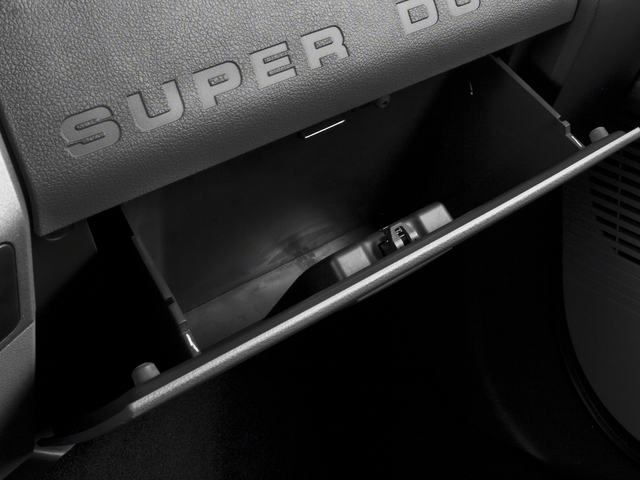

• Glove Box
• Interior Trim -inc: Chrome Interior Accents
• Manual Air Conditioning
• Manual Tilt/Telescoping Steering Column
• Outside Temp Gauge

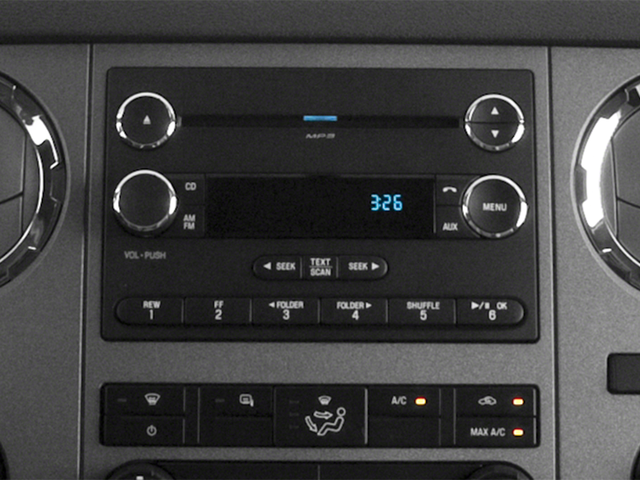

• Radio w/Clock
• Securilock Anti-Theft Ignition (pats) Immobilizer
• Urethane Gear Shifter Material

• 157 Amp Alternator
• 3.73 Axle Ratio
• 35 Gal. Fuel Tank
• 3580# Maximum Payload
• 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist and Hill Hold Control
• 72-Amp/Hr 650CCA Maintenance-Free Battery w/Run Down Protection
• Firm Suspension
• Front Anti-Roll Bar
• Front Suspension w/Coil Springs
• GVWR: 10,000 lb Payload Package
• HD Gas-Pressurized Shock Absorbers
• Hydraulic Power-Assist Steering
• Manual Locking Hubs
• Manual Transfer Case
• Part-Time Four-Wheel Drive
• Single Stainless Steel Exhaust
• Solid Axle Rear Suspension w/Leaf Springs
• Trailer Wiring Harness

• ABS And Driveline Traction Control
• AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC)
• Curtain 1st Row Airbags
• Dual Stage Driver And Passenger Front Airbags w/Passenger Off Switch
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• Low Tire Pressure Warning
• Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute
• Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters
• Side Impact Beams

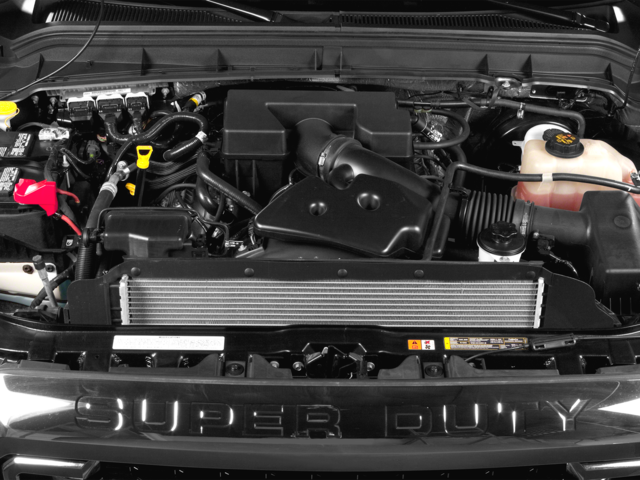

ENGINE: 6.2L 2-VALVE SOHC EFI NA V8 FLEX-FUEL

• (STD)

• Four Wheel Drive
• Tow Hitch
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Brake Assist
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Tow Hooks
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• AM/FM Stereo
• Satellite Radio
• MP3 Capability
• Auxiliary Audio Input
• Requires Subscription
• Bluetooth® Connection
• Smart Device Integration

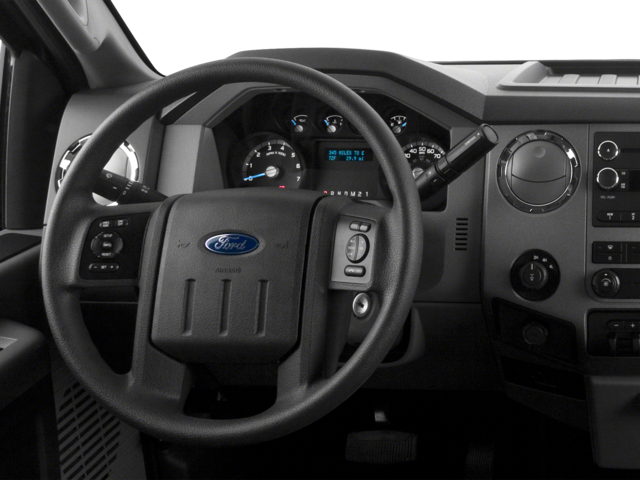

• Adjustable Steering Wheel
• A/C

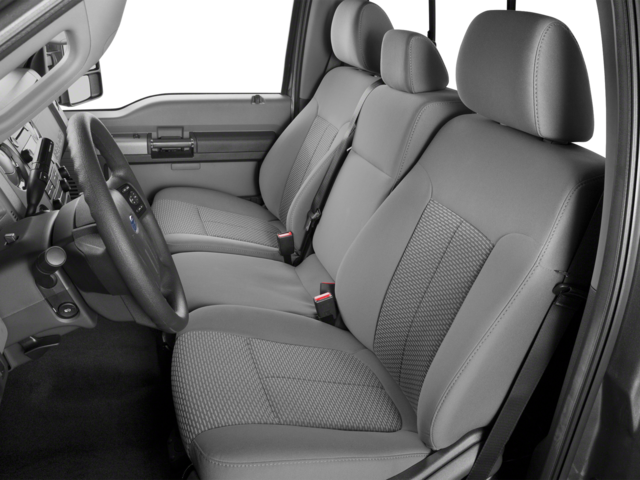

• Split Bench Seat
• Passenger Vanity Mirror
• Immobilizer
• Stability Control
• Front Side Air Bag
• Tire Pressure Monitor
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Head Air Bag
• Driver Restriction Features

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 650
• Maximum Alternator Capacity (amps): 157
• Weight Information
• Base Curb Weight (lbs): 6351
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6100
• Curb Weight - Front (lbs): 3717
• Curb Weight - Rear (lbs): 2634
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 19000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1250
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 12500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3125
• Maximum Trailering Capacity (lbs): 12500
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6100
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3
• Rear Brake Rotor Diam x Thickness (in): 14.3
• Tires
• Front Tire Order Code: TCH
• Rear Tire Order Code: TCH
• Front Tire Size: LT275/65SR18
• Rear Tire Size: LT275/65SR18
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 6390
• Rear Tire Capacity (lbs): 6390
• Revolutions/Mile @ 45 mph - Front: 652
• Revolutions/Mile @ 45 mph - Rear: 652

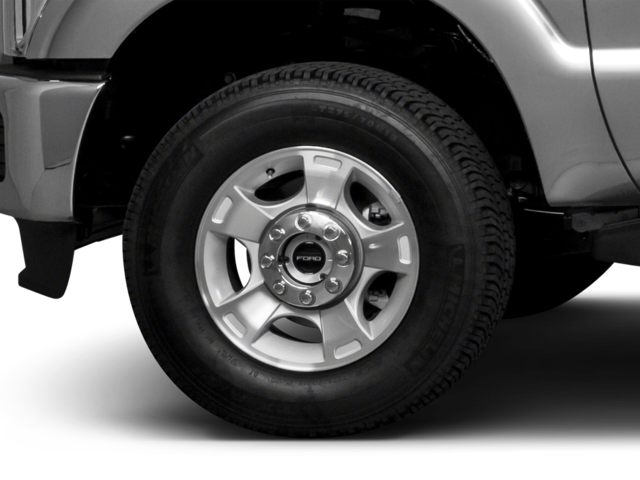

• Wheels
• Front Wheel Size (in): 18 X 8
• Rear Wheel Size (in): 18 X 8
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 46.1
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35
• Exterior Dimensions
• Wheelbase (in): 137
• Length, Overall (in): 227.6
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 79.2
• Overhang, Front (in): 38.1
• Cab to Axle (in): 56.3
• Ground to Top of Load Floor (in): 36.3
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 8.2
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98
• Cargo Box Width @ Top, Rear (in): 69.3
• Cargo Box Width @ Floor (in): 69.3
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 77.3
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68
• Front Hip Room (in): 67.6
• Summary

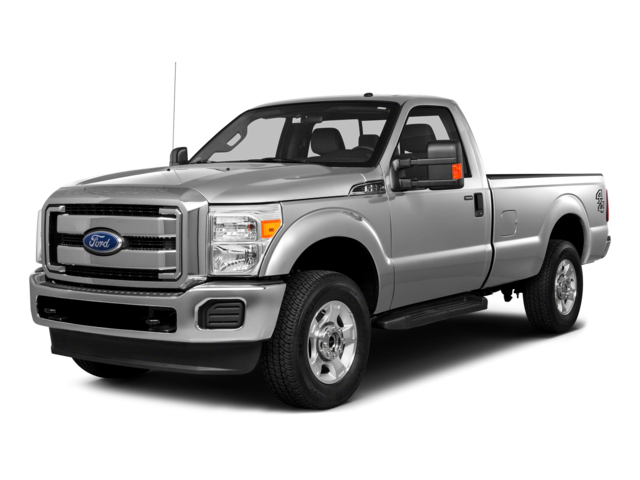

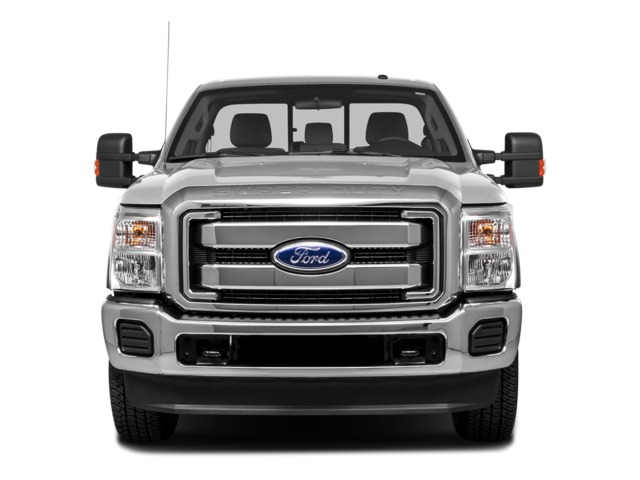

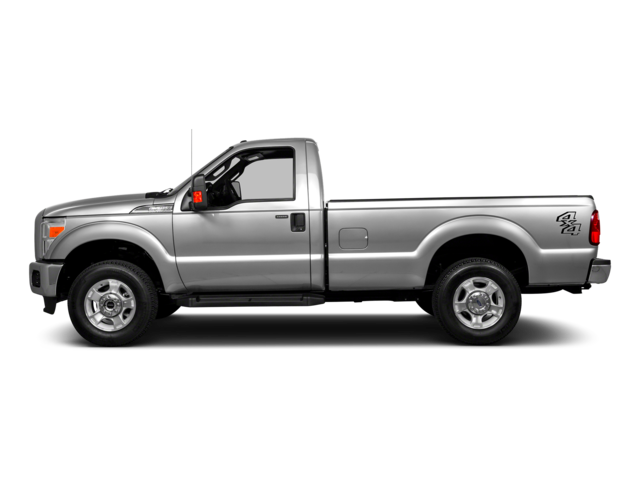

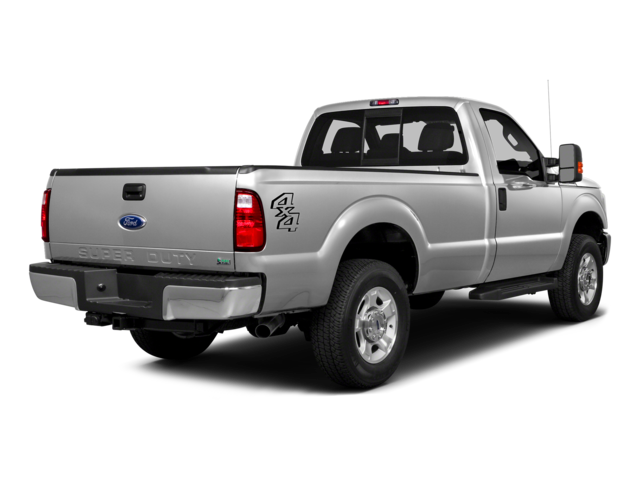

• Vehicle Name: Ford Super Duty F-250 SRW
• Body Style: SD Regular Cab
• Body Code: T
