• Headliner, cloth, over driver and passenger
• Oil life monitor
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Alternator, 150 amps
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Incomplete vehicle certification
• Rear Axle, 4.10 Ratio
• Rear wheel drive
• Steering, power
• Suspension, rear hypoid drive axle with multi-leaf springs

• Daytime Running Lamps
• Hill Start Assist
• StabiliTrak, traction assistance and vehicle stability enhancement system

ENGINE, VORTEC 6.0L V8

• (341 hp [254.3 kW] @ 5400 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4200 rpm) (STD) (Includes external oil cooler.

• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM HEAD RESTRAINTS AND INBOARD ARMRESTS Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)
• THEFT ALARM NOTIFICATION requires paid plan working electrical system cell reception GPS signal armed GM factory-installed theft-deterrent system contact method on file and enrollment to receive alerts. Message and data rates may apply. See onstar.com for details and limitations
• STEERING WHEEL LEATHER WRAPPED
• CRUISE CONTROL
• SUMMIT WHITE
• GVWR 14 200 LBS. (6441 KG) (STD)
• GRILLE CHROME
• REAR AXLE 4.10 RATIO
• FUEL ADDITIONAL 3-GALLONS 3 gallons of fuel in addition to normal assembly plant fill
• FUEL TANK CAPACITY APPROXIMATELY 57 GALLONS (215.7L). As part of the base design includes the auxiliary feed fuel fitting and in tank return line.
• STEERING WHEEL CONTROLS MOUNTED AUDIO CONTROLS
• MIRRORS OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC). Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle
• BODY STANDARD (STD)
• DRIVER CONVENIENCE PACKAGE includes Tilt-Wheel and (K34) cruise control
• REMOTE KEYLESS ENTRY with 2 transmitters and remote panic button
• CONSOLE ENGINE COVER with swing-out storage bin
• ENGINE VORTEC 6.0L V8 (341 hp [254.3 kW] @ 5400 rpm 373 lb-ft of torque [503.6 N-m] @ 4200 rpm) (STD) (Includes external oil cooler.
• PAINT SOLID
• Bluetooth® FOR PHONE personal cell phone connectivity to vehicle audio system (subscription to OnStar services not required for operation).
• AUDIO SYSTEM FEATURE USB PORT
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking Powertrain Grade Braking and Tap-Up/Tap-Down Driver Shift Control (STD)
• DOOR LOCKS POWER with lock-out protection
• BUMPER FRONT CHROME WITH STEP-PAD
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• MIRROR INSIDE REARVIEW MANUAL DAY/NIGHT (STD)
• POWER CONVENIENCE PACKAGE includes (A31) power windows and (AU3) power door locks
• ANTENNA EQUIPMENT includes additional antenna cable and ground plate. Provides additional ability to relocate standard OnStar antenna cable length 25 ft. Ships loose.
• WINDOWS POWER
• MEDIUM PEWTER CUSTOM CLOTH SEAT TRIM
• BATTERY HEAVY-DUTY 770 COLD-CRANKING AMPS maintenance-free with rundown protection and retained accessory power
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKET includes head restraints and vinyl or cloth trim (STD)
• CHROME APPEARANCE PACKAGE (Includes (V46) front chrome bumper and (V22) chrome grille.
• 4500 VAN PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER AND USB PORT includes seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Dual Rear Wheels
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Dual Rear Wheels
• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• WiFi Hotspot
• Bucket Seats
• A/C
• Bucket Seats
• Trip Computer
• Immobilizer
• Power Outlet
• Power Outlet
• Rear Defrost
• Daytime Running Lights
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Passenger Air Bag On/Off Switch
• Telematics
• Requires Subscription

• Brakes
• Brake ABS System: 4-wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.58 x 1.6
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 100
• Cab to End of Frame (in): 168.45
• Frame Width, Rear (in): 42
• Front Bumper to Back of Cab (in): 98.7
• Ground Clearance, Front (in): 9.3
• Ground Clearance, Rear (in): 8.35
• Ground to Top of Frame (in): 30.08
• Height, Overall (in): 83.78
• Length, Overall (in): 267.15
• Overhang, Front (in): 39.7
• Wheelbase (in): 159
• Width, Max w/o mirrors (in): 94.53
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 57
• Fuel Tank Location: Mid-frame
• Interior Dimensions
• Front Head Room (in): 40.85
• Front Hip Room (in): 65.48
• Front Leg Room (in): 41.35
• Front Shoulder Room (in): 68.85
• Passenger Capacity: 2
• Steering
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: ZW9
• Body Style: 159.0" WB

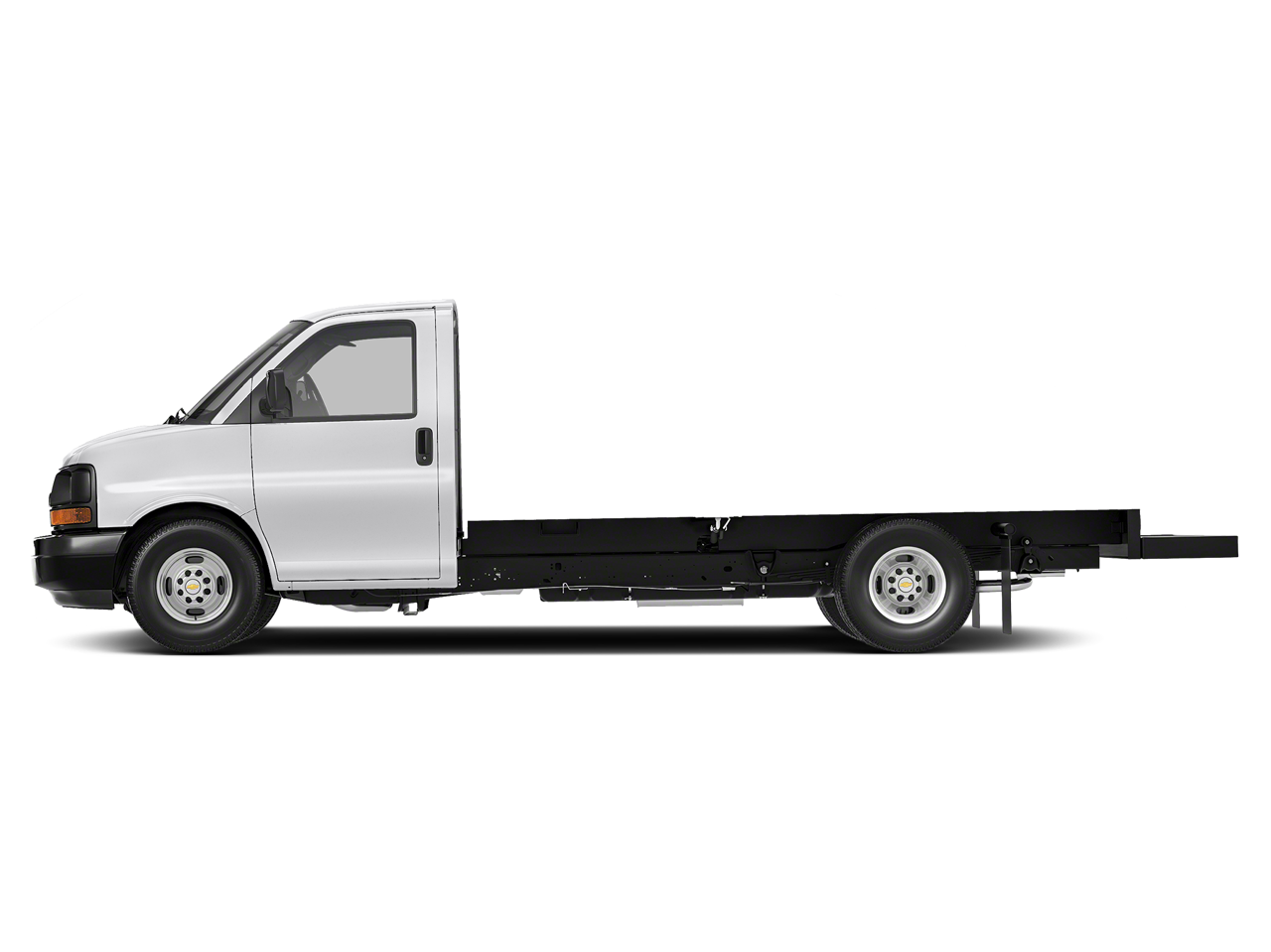

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Suspension
• Axle Capacity - Front (lbs): 4600
• Axle Capacity - Rear (lbs): 9600
• Axle Ratio (:1) - Rear: 4.10
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Spring Capacity - Front (lbs): 4600
• Spring Capacity - Rear (lbs): 9600
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Tires
• Front Tire Capacity (lbs): 2335
• Front Tire Order Code: XHF
• Front Tire Size: LT225/75R16E
• Rear Tire Capacity (lbs): 2470
• Rear Tire Order Code: YHF
• Rear Tire Size: LT225/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Weight Information
• Curb Weight - Front (lbs): 3173
• Curb Weight - Rear (lbs): 1762
• Gross Axle Wt Rating - Front (lbs): 4600
• Gross Axle Wt Rating - Rear (lbs): 9600
• Gross Combined Wt Rating (lbs): 20000
• Gross Vehicle Weight Rating Cap (lbs): 14200
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
